Engine Controls

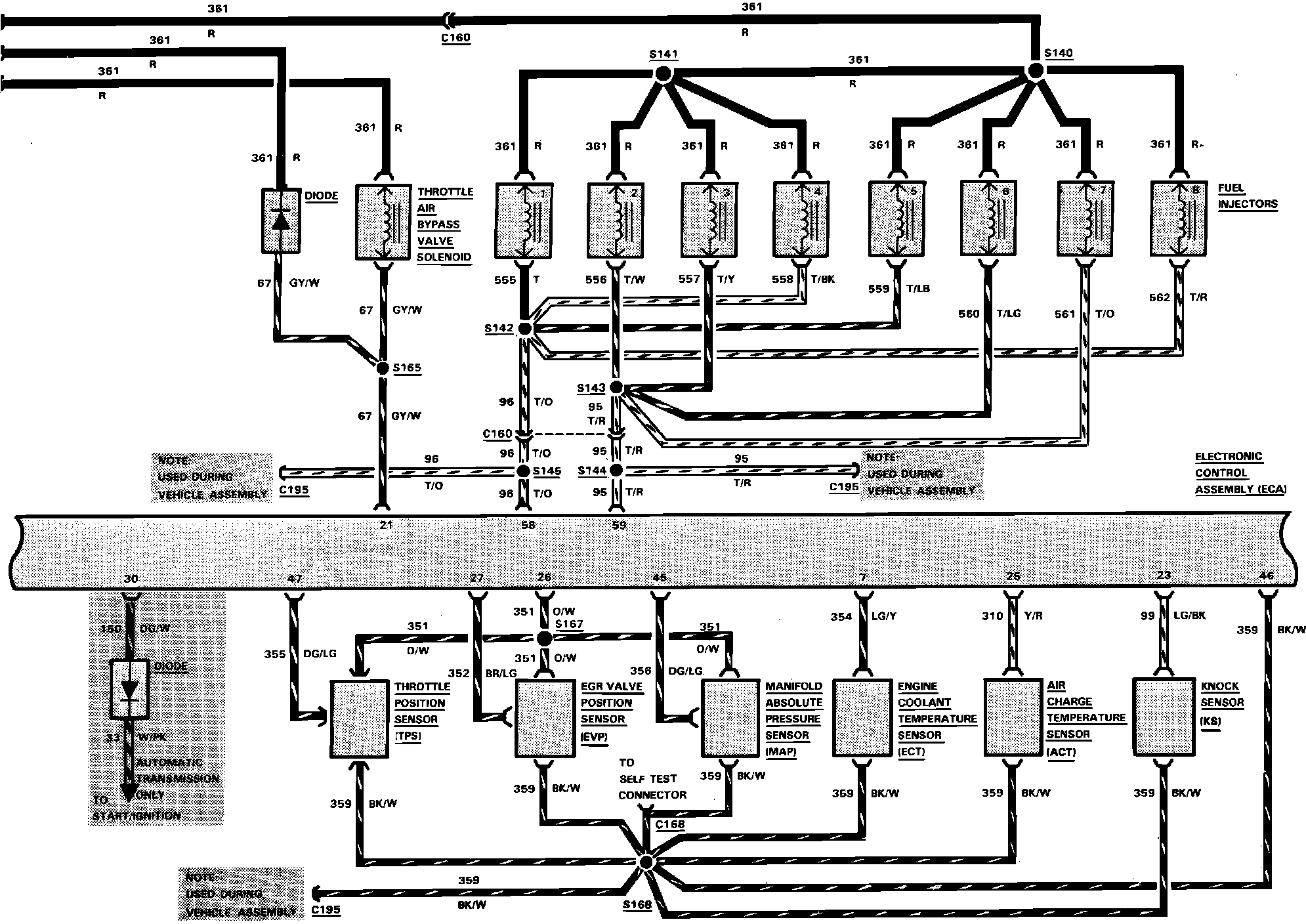

Fig. 20 Electronic Engine Control (EEC) System Wiring Circuit (Part 1 of 3). V8-302 (5.0L) EFI Engine:

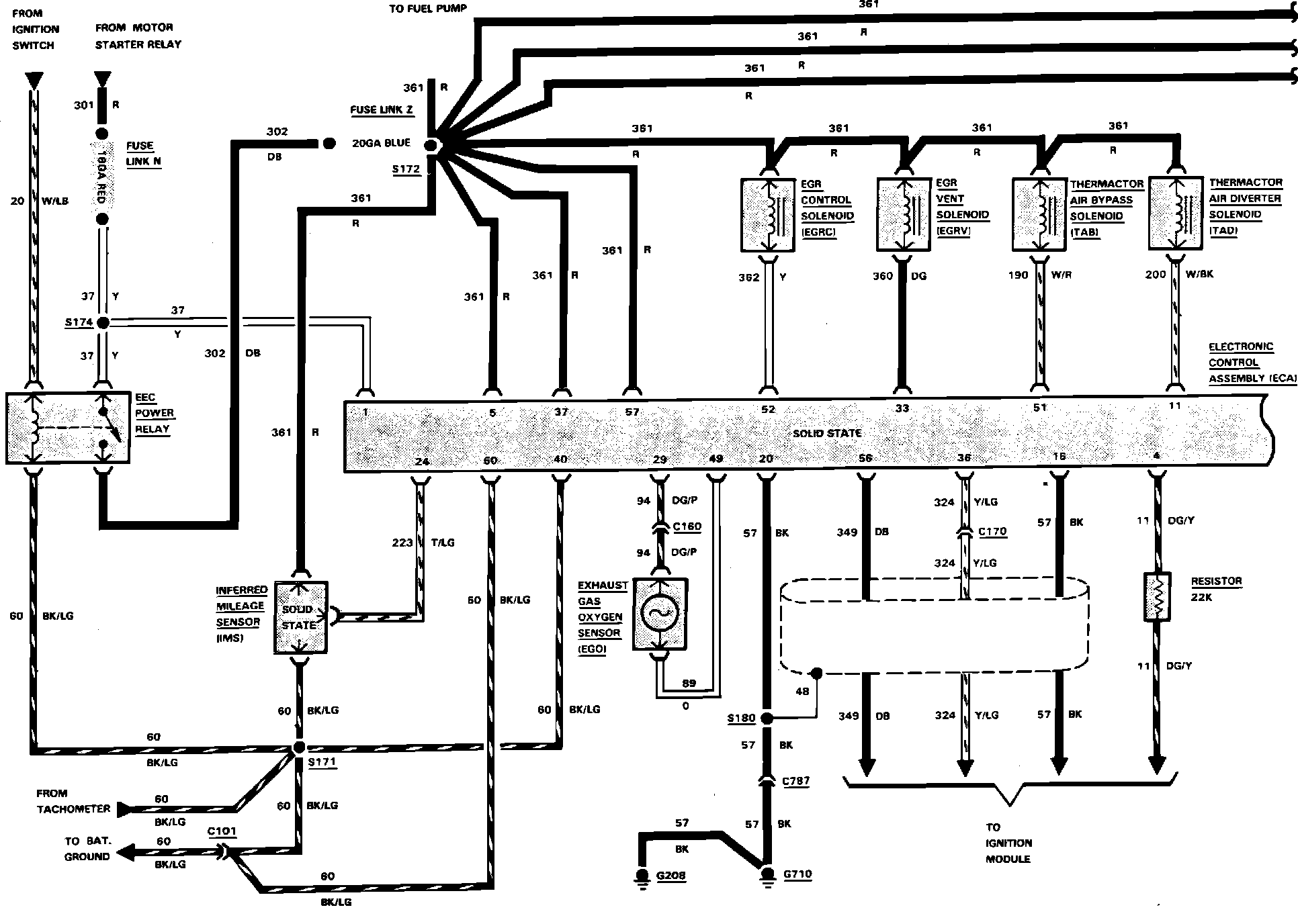

Fig. 20 Electronic Engine Control (EEC) System Wiring Circuit (Part 2 of 3). V8-302 (5.0L) EFI Engine:

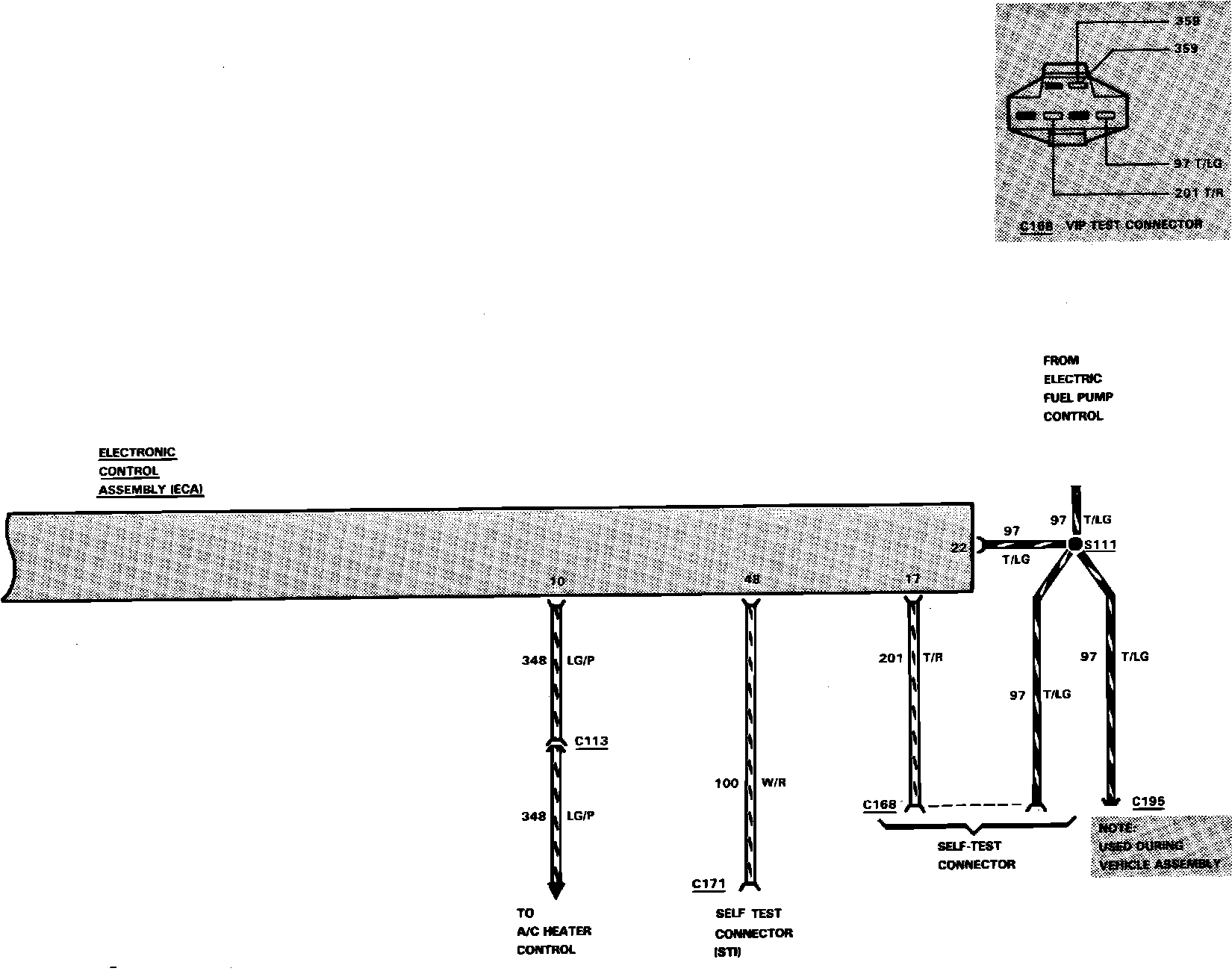

Fig. 20 Electronic Engine Control (EEC) System Wiring Circuit (Part 3 of 3). V8-302 (5.0L) EFI Engine:
