Input Shell and Sun Gear

Input Shell and Sun Gear

Disassembly

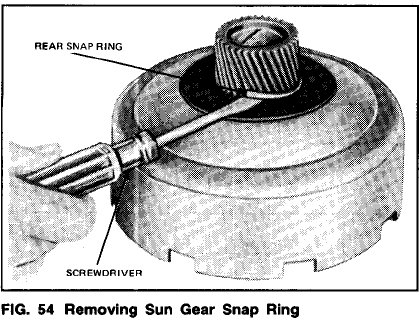

1. Remove the rear snap ring from the sun gear as shown in Fig. 54.

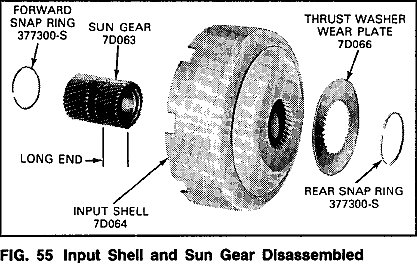

2. Remove the thrust washer wear plate from the input shell and sun gear (Fig. 55).
3. Working from inside the input shell remove the sun gear. Remove the snap ring from the gear.

Assembly

1. Install the forward snap ring on the forward end (short end) of the sun gear (Fig. 55). Working from inside the input shell, slide the sun gear and snap ring into place making sure that the longer end is at the rear (Fig. 55).
2. Place the thrust washer wear plate on the sun gear and install the rear snap ring.
