Parking Pawl

Parking Pawl

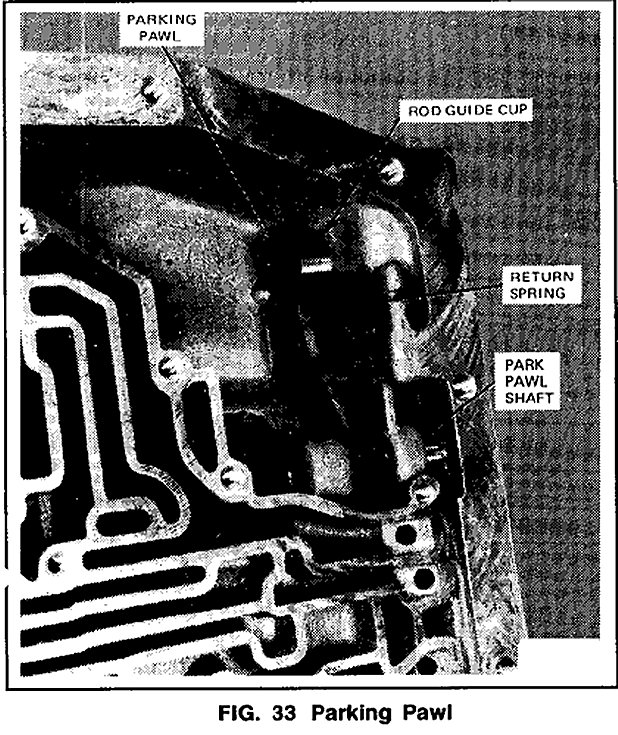

Refer to Fig. 33.

Disassembly

1 Slide the park paw shaft out the rear of the case and remove the parking pawl
2. Remove the return spring.

Assembly

1. Hook the squared end of the spring into the notch on the park pawl.
2. Hold pawl and spring in place and hook curved end of spring into the recess in the case.
3. Install the park pawl shaft.
