Intermediate One-Way Clutch

Intermediate One-Way Clutch

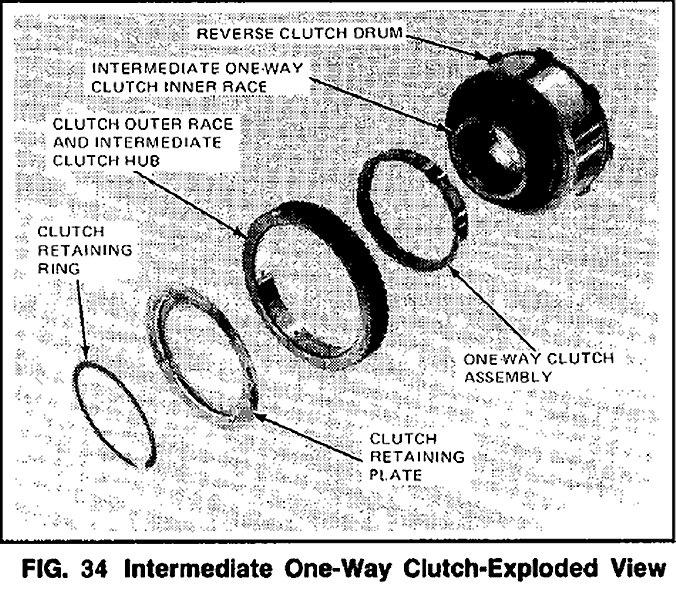

Refer to Fig. 34.

Disassembly

1. Using snap ring pliers, remove the clutch retaining ring.
2. Remove the clutch retaining plate.
3. Remove the clutch outer race by lifting on the race while turning counterclockwise.
4. Carefully lift the one-way clutch from the inner race.

Assembly

To assemble the intermediate one-way clutch, reverse the disassembly procedure.
