Disassembly and Assembly

3-4 Accumulator

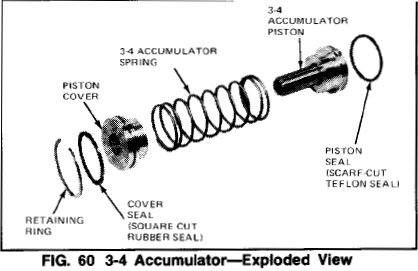

Refer to Fig 60.

Install new seals on the accumulator piston and the piston cover.

NOTE: Some transmissions will be built without a spring. Also~ the piston and spring construction may be different from that shown. Be sure the diagonal cuts on the piston seal are aligned properly.

2-3 Accumulator

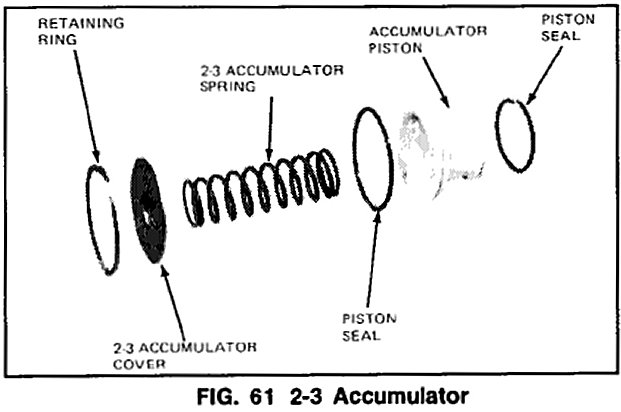

Refer to Fig. 61.

Install new seals on the accumulator piston. Be sure the diagonal cuts are properly aligned.

Low Reverse Servo

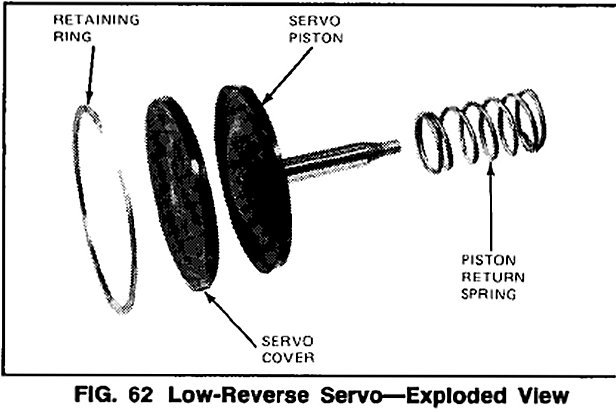

Refer to Fig. 62.

Inspect the sealing edge on both the servo cover and the apply piston. Replace the cover or piston, if necessary.

Overdrive Servo

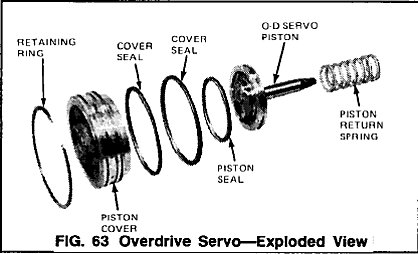

Refer to Fig. 63.

1. Pull the overdrive servo piston out of the piston cover.
2. Install new seals on the piston and cover.
3. Install the piston in the cover.
