Extension Housing Bushing

Extension Housing Bushing

Disassembly






1. Remove the extension housing seal using Slide Hammer T59L-1OO-B and Seal Remover T74P-77248A (Fig 21).

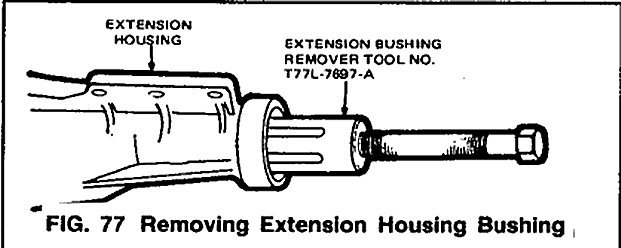

2. Remove the extension housing bushing using Bushing Remover T77L-7697-A (Fig 77).

Installation






1. Install the extension housing bushing using Bushing Installer T80L-77034A (Fig. 78).






2. Install the extension housing seal using Seal Installer TOOL-T61L-7657-A (Fig 18)
