Case Bushing

Case Bushing

Disassembly and Assembly

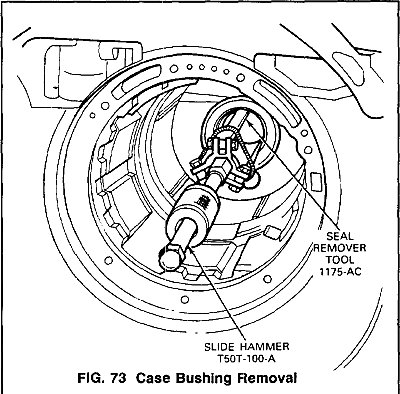

To remove the transmission case bushing use Slide Hammer T5OT-1OO-A and Seal Remover TOOL 1175AC (Fig 73).

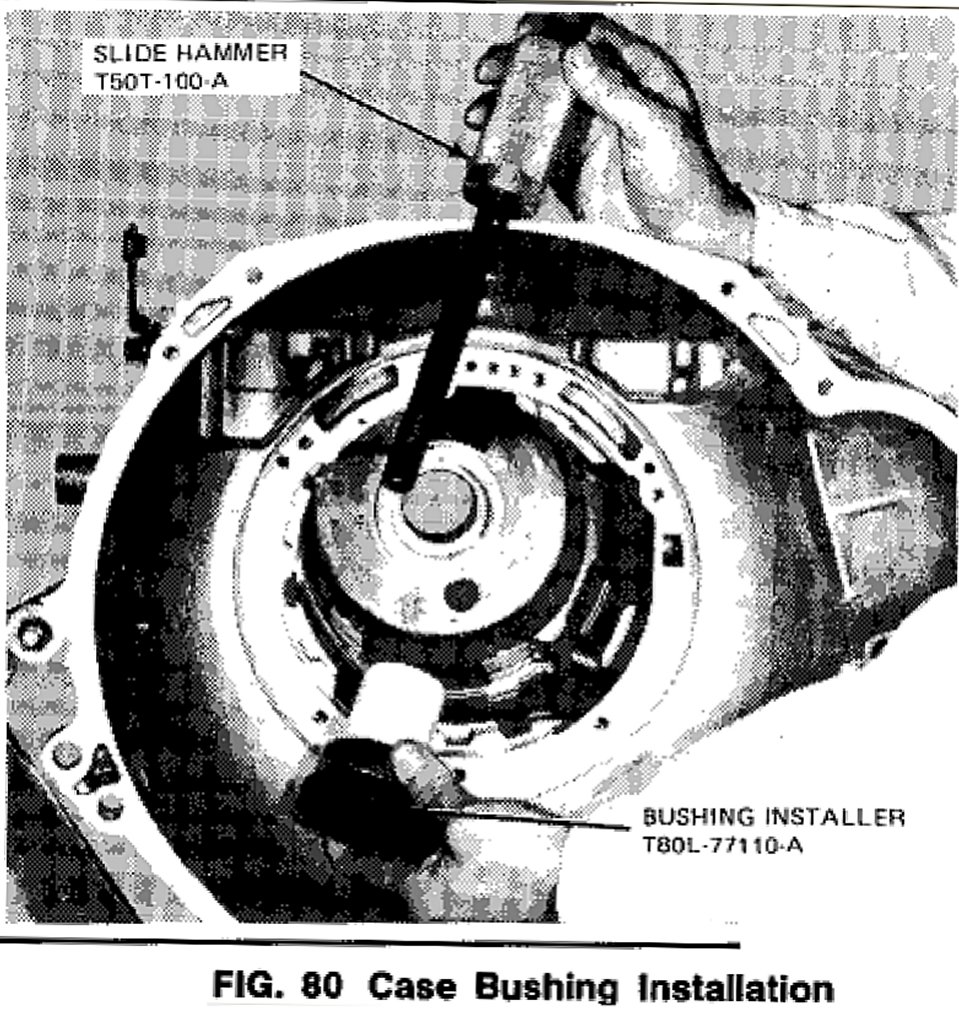

1. Position the replacement bushing on Bushing Installer T80L-7711O-A (Fig. 80) and install in the bushing bore through the front of the case.
2. Thread Slide Hammer T5OT-1OO-A into the bushing installer through the back of the case and install the bushing.
