G701 F150-350 W/Gasoline Engines

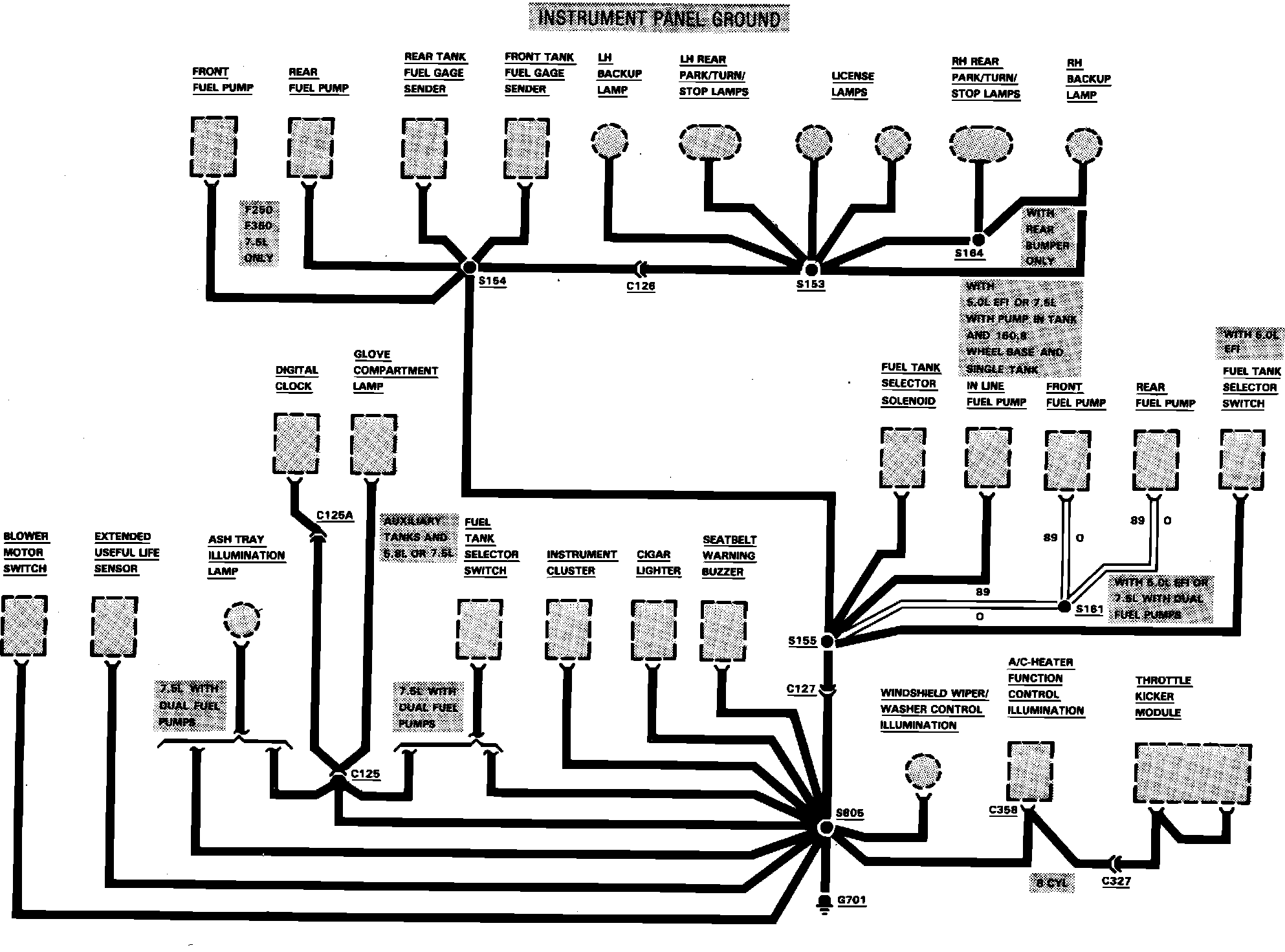

Fig. 32 Ground Distribution (G701) Wiring Circuit. F150-350 W/Gasoline Engines:
