Brake Master Cylinder: Description and Operation

Master Cylinder:

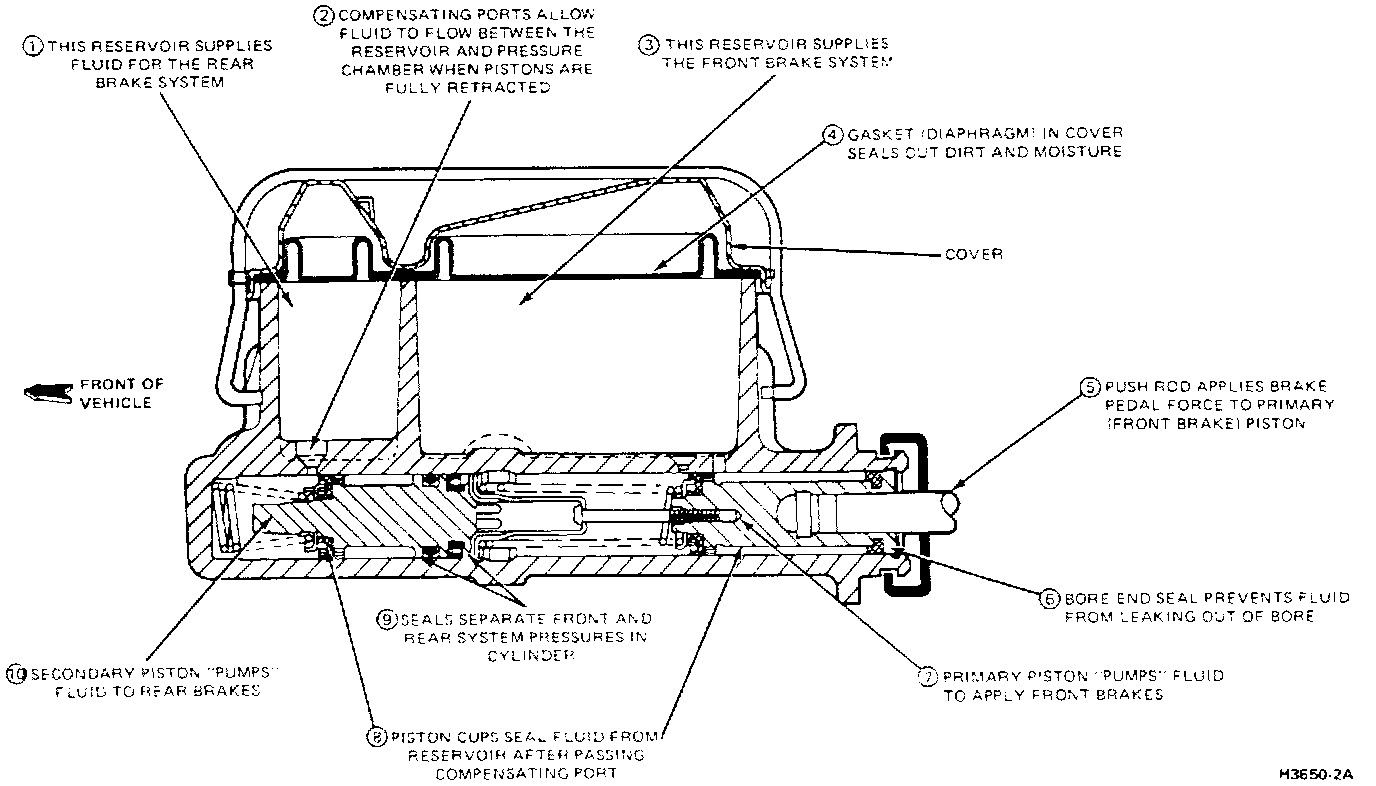

The dual master cylinder contains a double hydraulic cylinder with two fluid reservoirs, and primary and secondary hydraulic pistons.

The dual master cylinder performs in the following manner:

Rear wheel brakes - are connected to the secondary outlet port and are actuated by the secondary piston assembly.

Front wheel brakes - are connected to the primary outlet port (nearest the dash panel) and are actuated by the primary piston assembly.

Both primary and secondary pistons function together.
