Less Integral Reservoir Disassembly

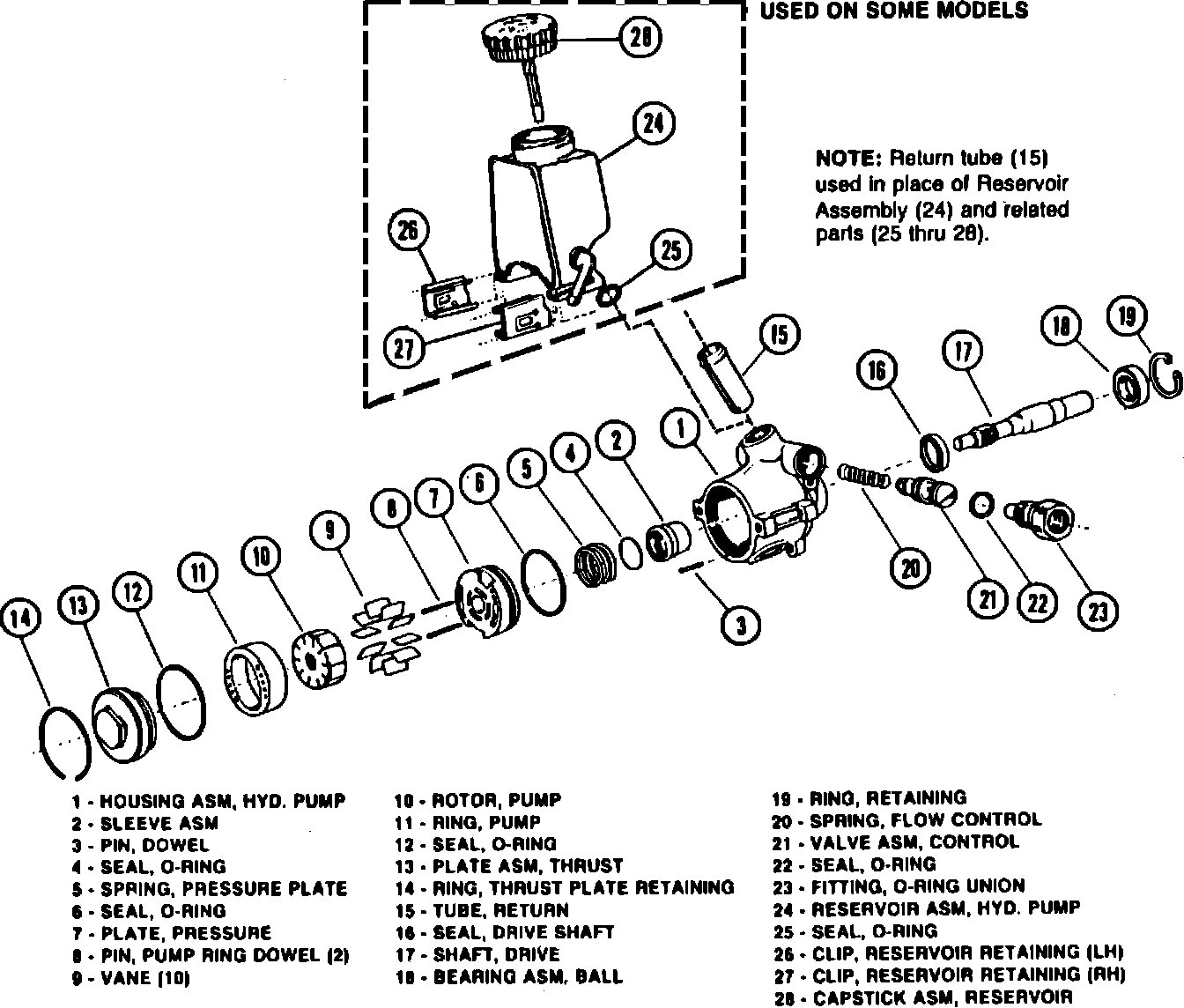

Fig. 1 Vane type power steering pump, less integral reservoir disassembled:
