General Information

An Emission Systems Required Maintenance Chart for each truck model is listed on the following pages.

The Emission Systems Required Maintenance Chart lists the items required to maintain the vehicle emission systems at levels determined by the Federal Government (Environmental Protection Agency). Refer to the appropriate Sections of the Engine Shop Manual and the Engine/Emission Diagnosis* manual for the Maintenance Procedures, which are related to the item listed on the maintenance schedule. Use these procedures to perform the required emission system maintenance items listed on the maintenance charts.

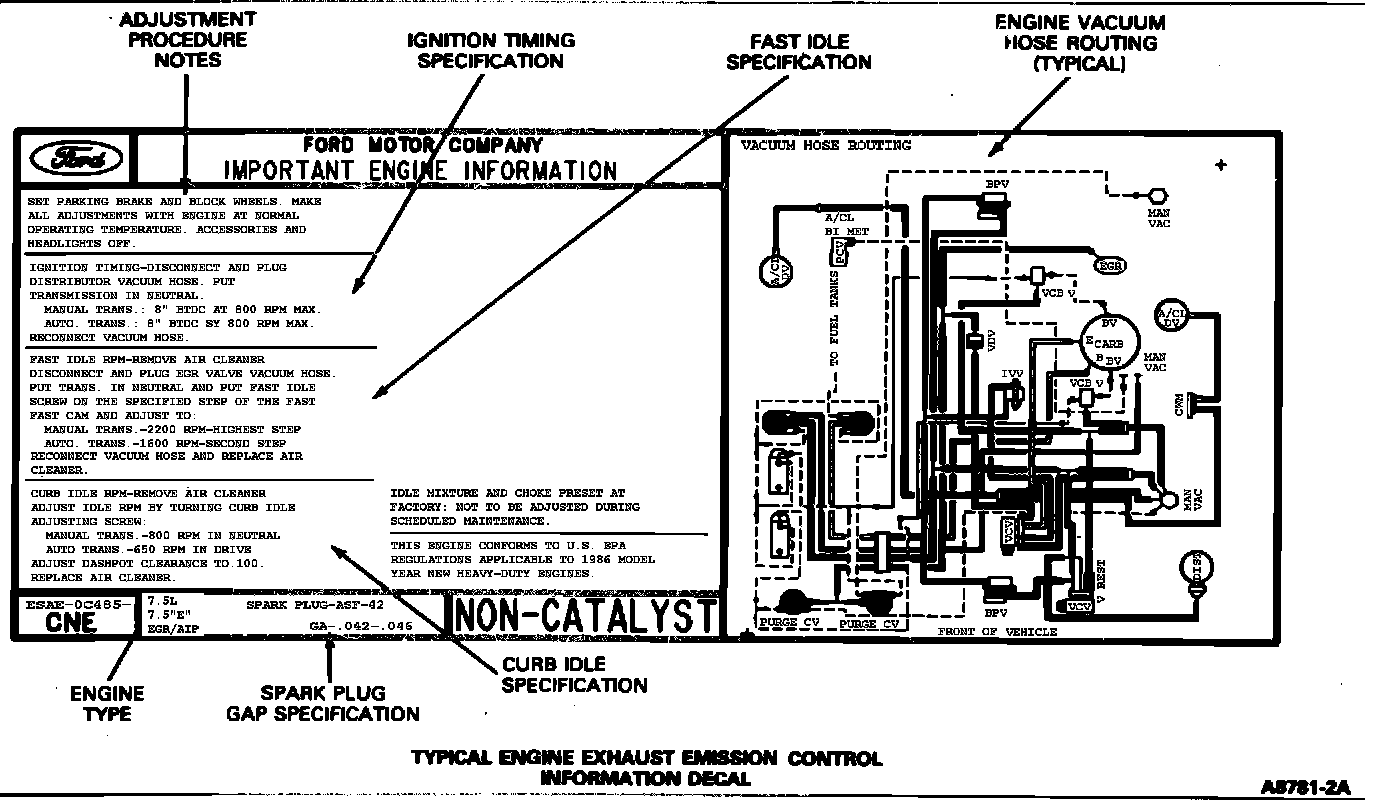

FIGURE 1 - TYPICAL VEHICLE EMISSION CONTROL INFORMATION DECAL - LIGHT TRUCK:

Maintenance service adjustments must conform to specifications contained in the Engine/Emissions Diagnosis* manual, to those listed in the Truck Performance Specifications Book or shown on the Vehicle Emission Control Information Decal which is located on or near the engine (Fig. 1), or the emissions systems may become inoperative.

If an engine is equipped with a "Dura-Spark" ignition system and any high tension ignition wire was detached from a spark plug, the distributor cap, or the coil to perform

a maintenance operation, Silicone Dielectric Compound (D7AZ-19A331-A, [ESA-M1C171-A] or equivalent) must be applied to the boot before re-connection. Using a small clean screwdriver, apply a thin layer of Silicone Dielectric Compound on the entire interior surface of the boot.

As a safety precaution, before starting the engine to perform maintenance, make sure the transmission selector is in PARK (Automatic Transmission) or NEUTRAL (Manual Transmission), the parking brake set and the wheels blocked.

IN GENERAL, MAINTENANCE REPLACEMENT, OR SERVICE OF THE EMISSION CONTROL DEVICES OR SYSTEMS IN YOUR NEW FORD VEHICLE OR FORD ENGINE MAY BE PERFORMED AT YOUR EXPENSE BY ANY AUTOMOTIVE REPAIR ESTABLISHMENT OR INDIVIDUAL USING AUTOMOTIVE PARTS EQUIVALENT TO THOSE WITH WHICH YOUR VEHICLE OR ENGINE WAS ORIGINALLY EQUIPPED. IF OTHER THAN FORD OR MOTORCRAFT SERVICE PARTS OR FORD AUTHORIZED, REMANUFACTURED PARTS ARE USED FOR MAINTENANCE REPLACEMENTS OR FOR THE SERVICE OF COMPONENTS AFFECTING EMISSION CONTROL, THE OWNER SHOULD ASSURE HIMSELF THAT
SUCH PARTS ARE WARRANTED BY THEIR MANUFACTURER TO BE EQUIVALENT TO GENUINE FORD MOTOR COMPANY PARTS IN PERFORMANCE AND DURABILITY. FORD, HOWEVER, ASSUMES NO LIABILITY WHATSOEVER, UNDER THE EMISSION CONTROL SYSTEM OR ANY OTHER WARRANTY WITH RESPECT TO PARTS OTHER THAN FORD SERVICE PARTS OR FORD AUTHORIZED REMANUFACTURED PARTS. THE EMISSIONS CONTROL SYSTEMS WARRANTY COVERS THE EMISSION CONTROL DEVICES AND SYSTEMS. PLEASE CONSULT YOUR WARRANTY FACTS BOOKLET FOR WARRANTY INFORMATION.

Maintenance Schedule Applicable To Bronco, E-150, E-250, E-350 and F-150, F-250, F-350 Trucks Four maintenance schedules are specified for the 1986 model Bronco, Econoline and F-Series trucks. They are identified by the lefters B, E, F and L. The application of the various maintenance schedules are as follows:

Catalyst Equipped Vehicles Require Unleaded Fuel Only

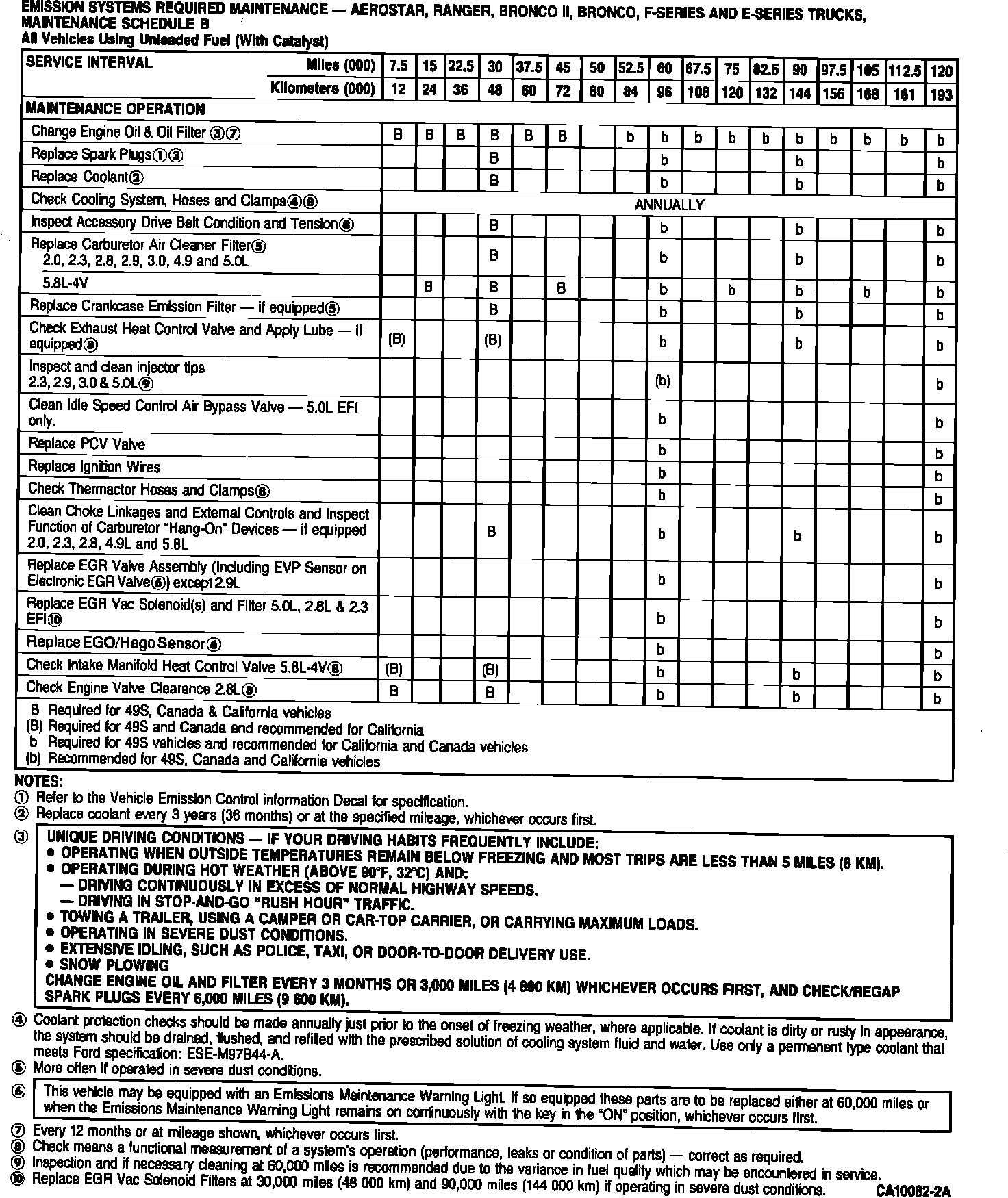

MAINTENANCE SCHEDULE B:

Maintenance Schedule "B" - Gasoline Engine Equipped Vehicles (Under 8500 Pounds GVW) The following catalyst equipped vehicles, designated for use with "Unleaded Fuel Only" should be maintained according to Maintenance Schedule "B."

^ F-150

^ F-250 except "Heavy Duty"

^ E-150

^ E-250 except Club Wagon

^ Bronco Non-Catalyst Equipped Vehicles Using Leaded Fuel

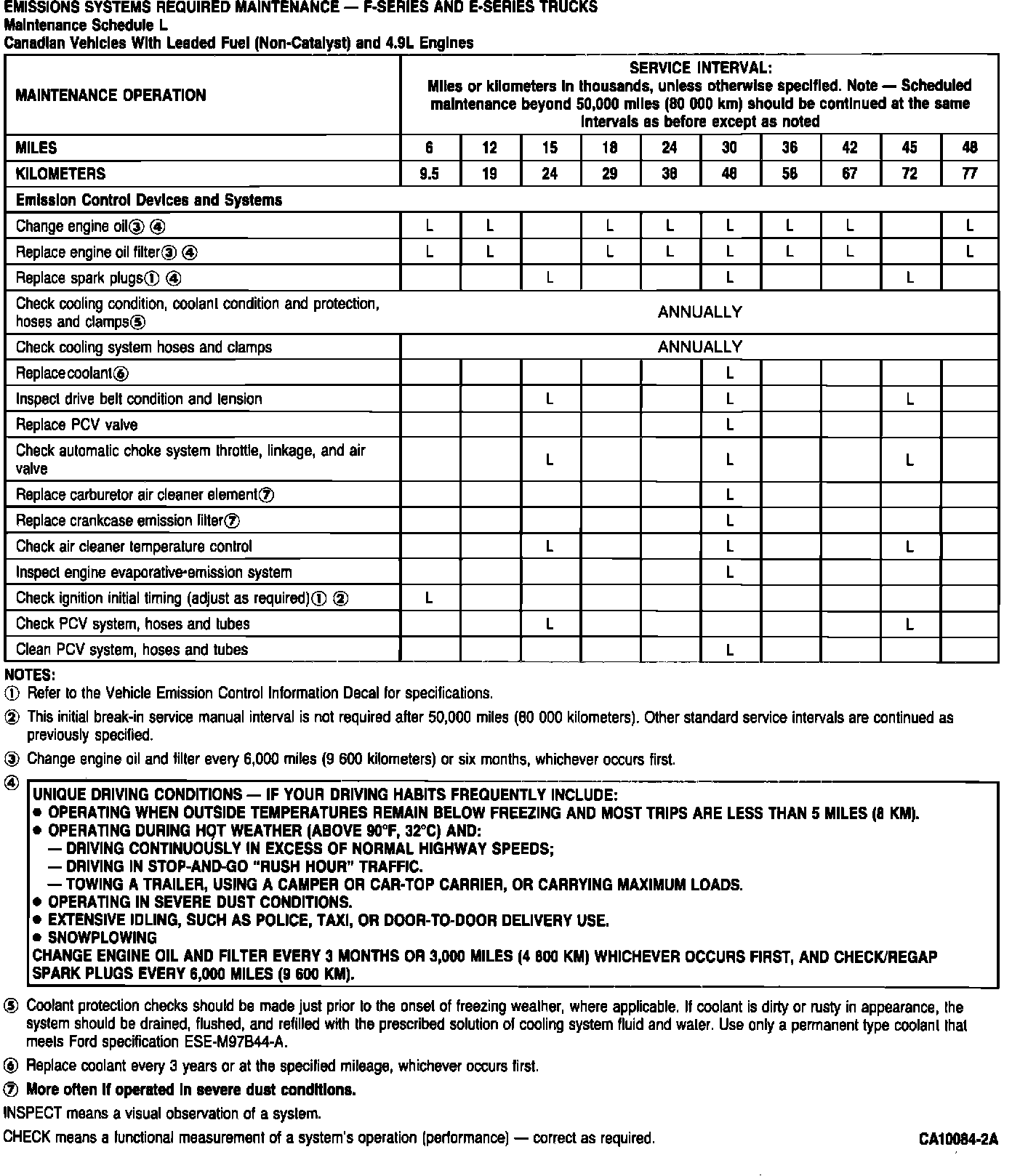

MAINTENANCE SCHEDULE L:

Maintenance Schedule "L" - Gasoline Engine Equipped Vehicles (Over/Under 8500 Pounds GVW) The "L" maintenance schedule is used for the following non-catalyst "Canadian only" leaded fuel vehicles built with 4.9L (300 CID) engines.
^ F-150/F-250/F-350

^ E-150/E-250/E-350

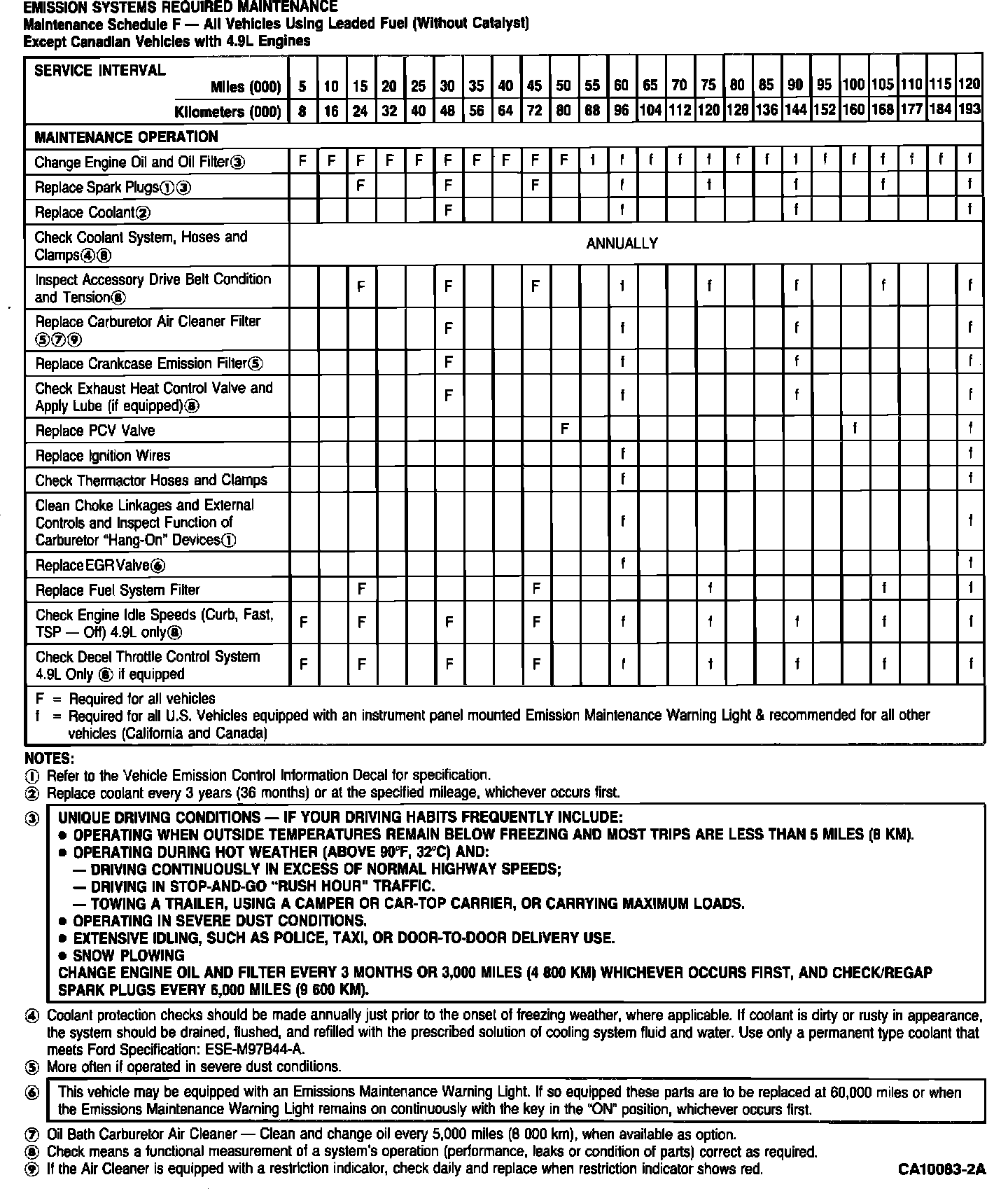

MAINTENANCE SCHEDULE F:

Maintenance Schedule "F" - Gasoline Engine Equipped Vehicles (Over 8500 Pounds GVW) The following non-catalyst equipped vehicles, designated for use with "leaded fuel only" should be maintained according to maintenance schedule "F."
^ Heavy Duty F-250

^ F-350

^ E-250 Club Wagon

^ E-350

^ B-600, 700

^ C-600, 700 & 800

^ F-600, 700 & 800

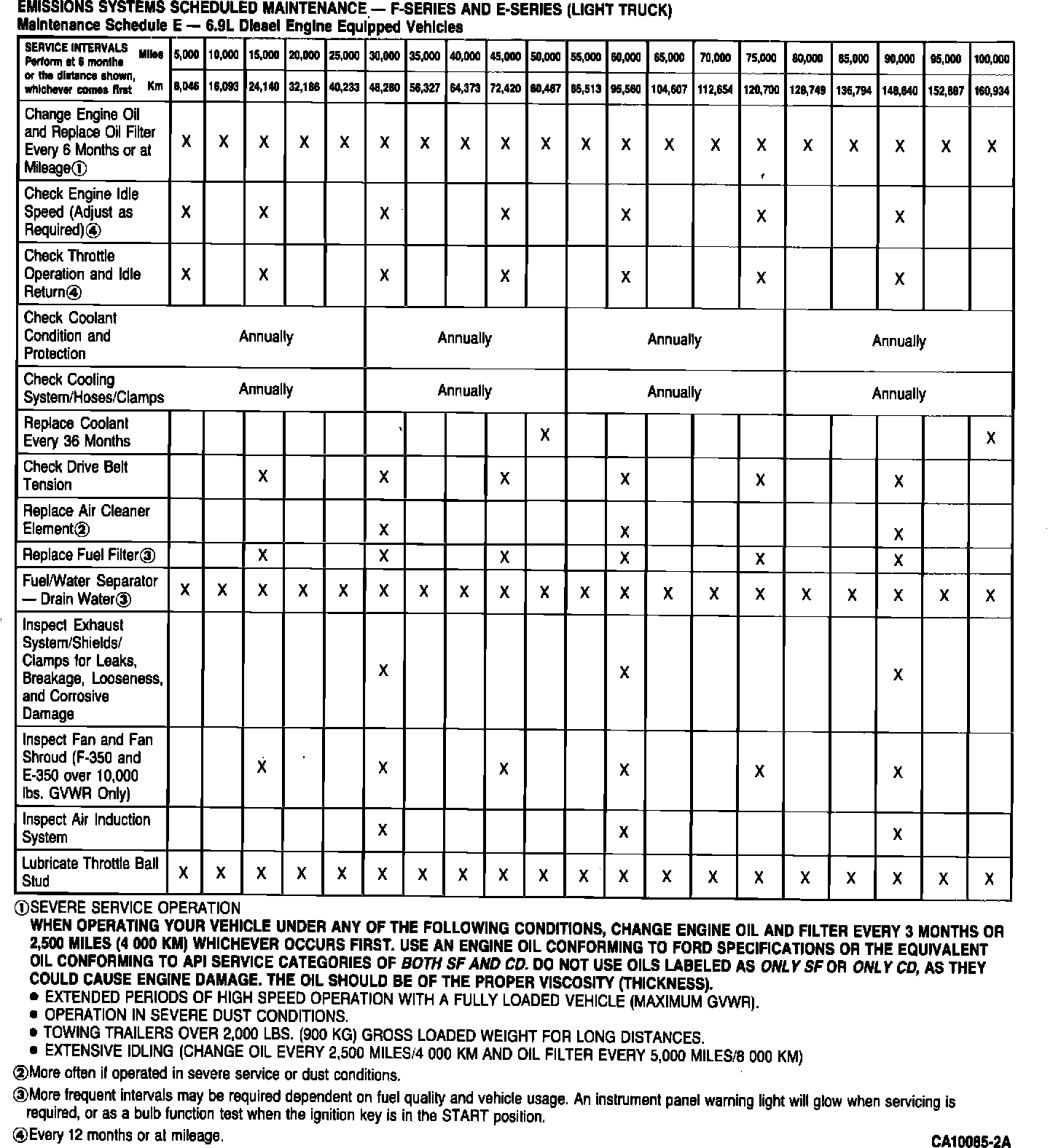

MAINTENANCE SCHEDULE E:

Maintenance Schedule "E" - 6.9L Diesel Engine Equipped Vehicles The "E" maintenance schedule is used for the following Diesel Engine Equipped Vehicles:
^ Heavy Duty F-250

^ F-350

^ Heavy Duty E-250

^ E-350
